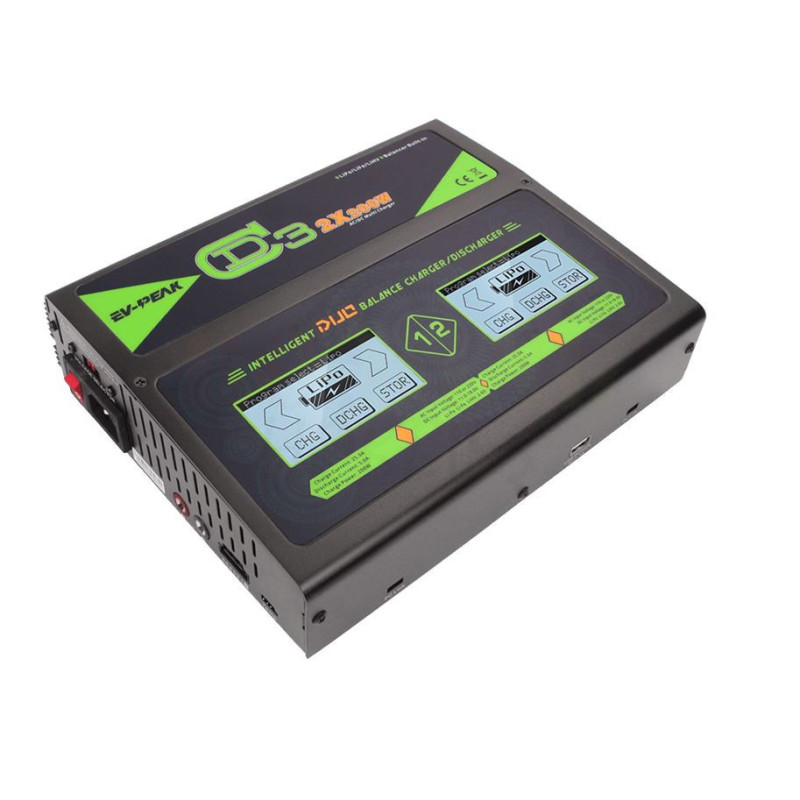

EV-Peak CD3 Dual Balance Charger/Discharger

CD3 Quad Balance Charger/Discharger

LiPO, NiMH, NiCD, PB

AC Input voltage 110Vor220V

DC Input voltage 11-18.0V

Charge power max.200Wx2

Discharger power max.20W x2

Charge current range (0.1-25.0A)x2

Discharge current range (0.1-5.0A)x2

Balance tolerence ±0.01V

NiCd/NiMH battery cell count 1 – 15cells

LiPo/LiHV/LiFe battery cell count 1 – 6S

Pb battery voltage 2 V – 24V

Dimension 240x200x68mm

Weight 1730g

Features

• HIGH POWER! 2 Individual 25Amp/200Watt Charge Ports! Each port is fully independent of the other and has its own dedicated power! Using 200Watts/25Amps on a port in no way limits the other port's ability to charge to its full potential! Max the charger out by using 200Watts/25Amps on each port at the same time for a total of 200Watts.
• AC & DC POWERED! This charger plugs directly into the wall! It also can be connected to a DC power source such as a 12V car battery or a DC Power Supply. WORLDWIDE VOLTAGE COMPATIBILITY! Select between 100V and 220V depending on your locality. The USA and Canada generally have 110V wall outlets. Other countries may use higher voltage, 220V. This charger accommodates both of them so it is compatible WORLDWIDE!
• DIGITAL POWER MODE! Each Port can act as a power supply! Use this function to power external items such as a pit light, tire truer, motor checker, charger, or anything else that runs off of DC power. Both the Voltage and Amperage are adjustable to suit the needs of the connected device. Amperage adjustable from 0.1A-10.0A. Voltage Adjustable from 3.0V-24.0V .
• ADJUSTABLE CUTOFF VOLTAGE (TERMINAL VOLTAGE CONTROL): The voltage per cell at which the charger stops charging the battery can be adjusted for fine user precision. Adjustments available for LiPo, LiIo, LiFe, Pb batteries. (Adjustment values listed below) VOLT METER MODE: Check the voltage of a Lithium battery's cells when plugged into the balance port. Simply hold the INC button when in a Lithium menu. The screen will provide a readout of each cell's voltage.
• EXTRA FEATURES: Balance Charge mode balances the cells in your Lithium packs for optimum performance and safety. Storage mode brings your lithium batteries to half charge for extended storage times. Discharge mode for all battery types have adjustable end voltage. Great safety features such as mAh cutoff, safety timer, low DC input voltage cutoff, Temperature cutoff (requires optional temp probe). NiMH & NiCD Auto charge, Cycle, Rest time, Peak Sensitivity.

Specifications

• Brand Name: EV-PEAK
• Use: Standard Battery
• Package: Yes
• Type: Electric
• Model Number: CD3
• DC Input: 11-18V
• CHARGE POWER: 200W x 2
• CHARGE CURRENT: 25Ax2
• NiM/NiCd H battery cell acount: 1-15 CELLS
• LiPo/Li-Ion/LiFe battery count: 1-6s
• Pb battery voltage: 2-24V
• Balance current: 400mA/cell
• Weight: 2000g
• AC Input: 100 OR 220V
• Use: lipo Li-ion LiHV LiFe NiMH NiCD PB BATTERY
