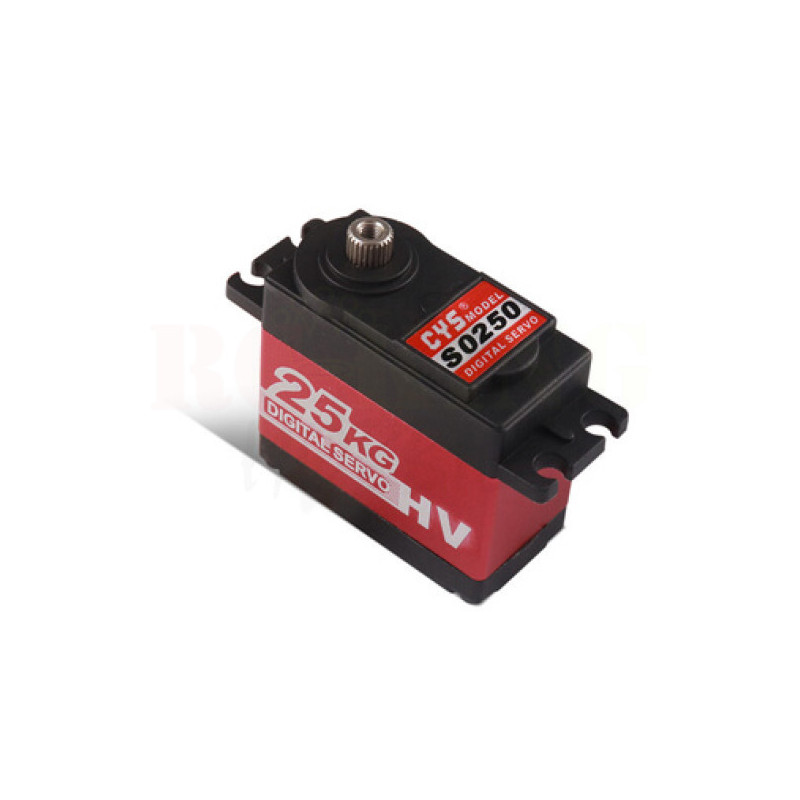

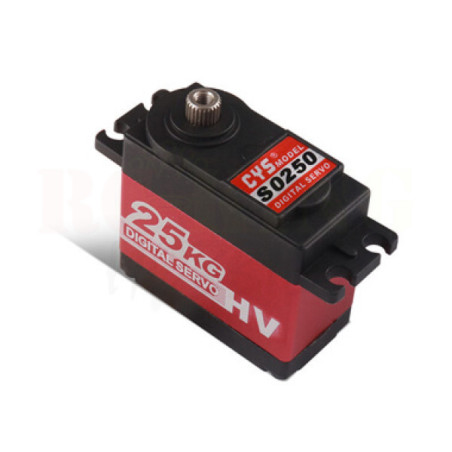

CYS-S0250 25KG Digital Servo

Specifications

Description : 25Kg Digital waterproof servo for 1/10 scale rc car

Size : 40.5*20*38MM

Torque : 22Kg.cm ~ 25Kg.cm

Speed : 0.14sec ~ 0.12sec/60 degree

Voltage : 6.0Volts ~7.4Volts

Weight : 62± 1 g

Type Digital

Weight 62g ± 1g

Size 40.5*20*38mm

Control System (+)Pulse Width Control 1500usec Neutral

Operating Voltage 6.0~7.4Volts

Operating Temperature Range (-)10 to +50 degree C

Operating Speed (6.0V) 0.14sec/60° at no load

Operating Speed (7.4V) 0.12sec/60° at no load

Stall Torque (6.0V) 22kg.cm

Stall Torque (7.4V) 25kg.cm

Operating Angle 45deg.one side pulse traveling 500 usec

Direction Anticlockwise/Pulse Traveling 1000~2000usec

Current Drain (6.0V) 20mA/idle and 100mA no load operating

Current Drain (7.4V) 20mA/idle and 150mA no load operating

Stall Current 2.5A/2.8A

Dead Band Width 4usec

Motor Type NdFeB

Bearing Type Dual ball bearing

Horn gear spline 25T

Gear Type Metal

Connector Wire Length 300mm±5mm

Wire info Brown/Black = Negative

Red = Positive

Orange/White = Signal
