Tamiya TT-02R 4WD Touring Car Chassis Kit

The Tamiya TT-02R 4WD Touring Car Kit is a refined, race-spec version of the TT-02 chassis that features a wide range of option parts and redesigned components to make it ready to race. The included racing spec parts include upgraded uprights, motor mount, shafts, joint cups and more, while the suspension is fitted with metal parts and CVA oil dampers. It retains the TT-02's versatility and easy-to-drive characteristics.

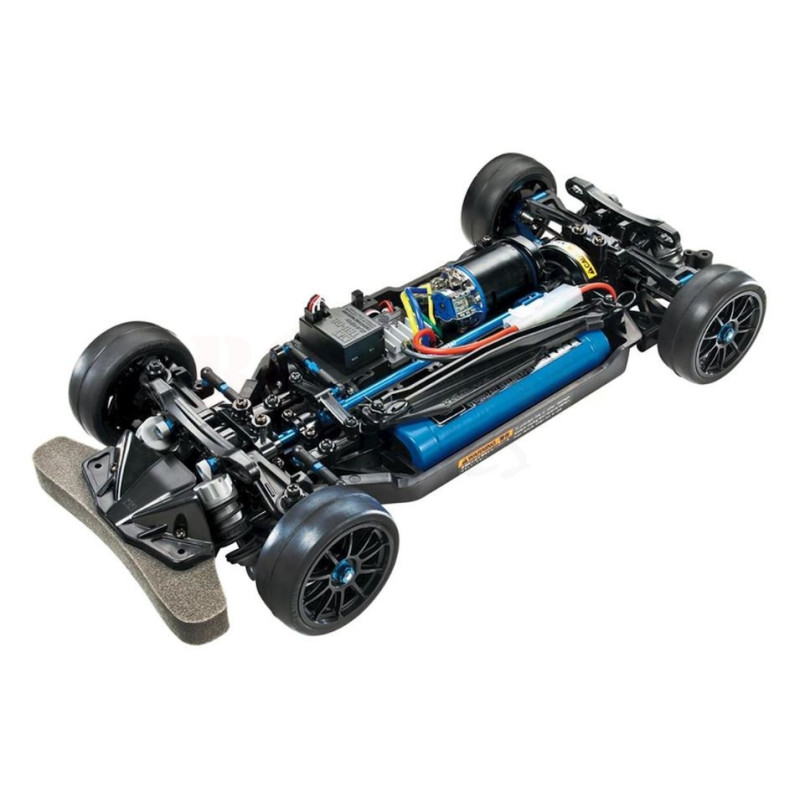

NOTE: Finished chassis shown in photos is for illustrative purposes only. See needed to complete list below for a full list of items required to complete the model.

Features:

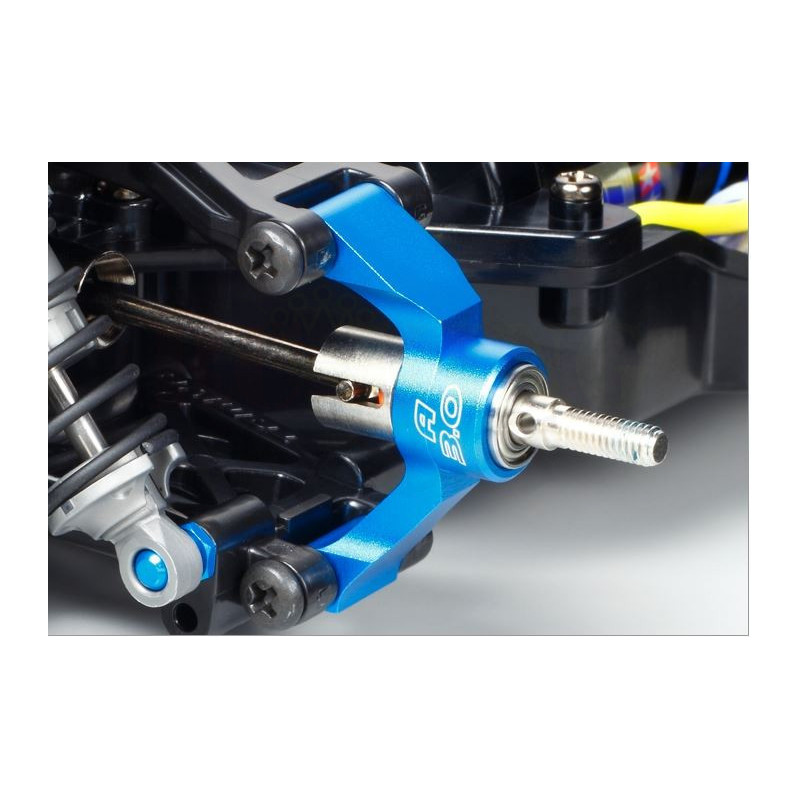

Aluminum uprights (3-degree toe-in)

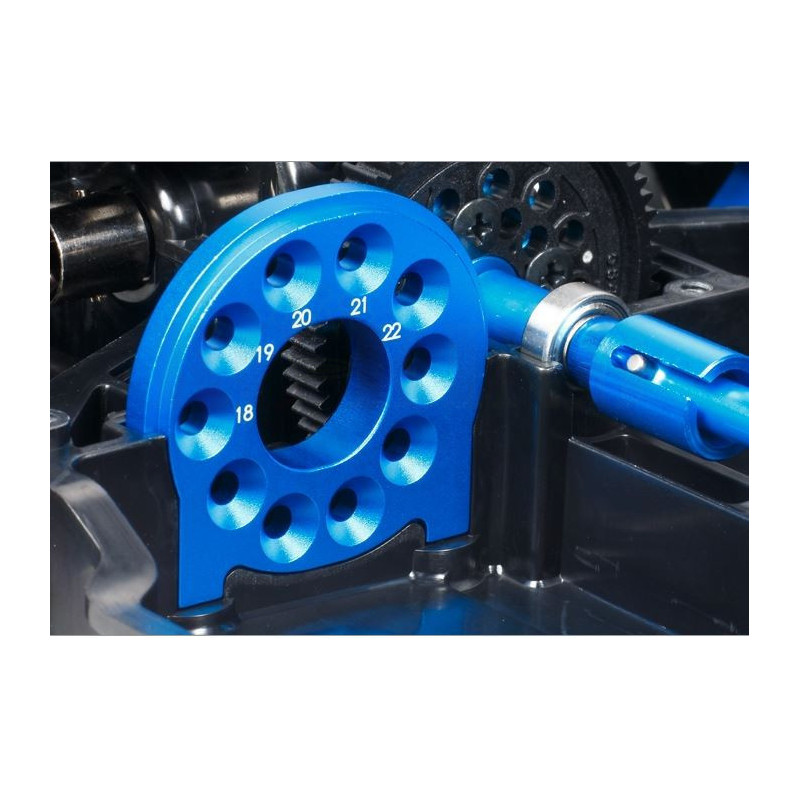

Aluminum motor mount

Specifications:

Adjustable Gear Ratio: Yes

Bearings: Includes full ball bearings

Chassis Material: ABS Plastic

Chassis Type: TT-02R

Construction Type Assembly: Kit

Differential Type: Plastic Gear

Drive Type: 4WD

Tyres: Rubber Slicks and Plastic Rims

Requires A: Requires 2-channel radio, steering servo, ESC, 7.2-volt battery with charger

Scale: 1/10

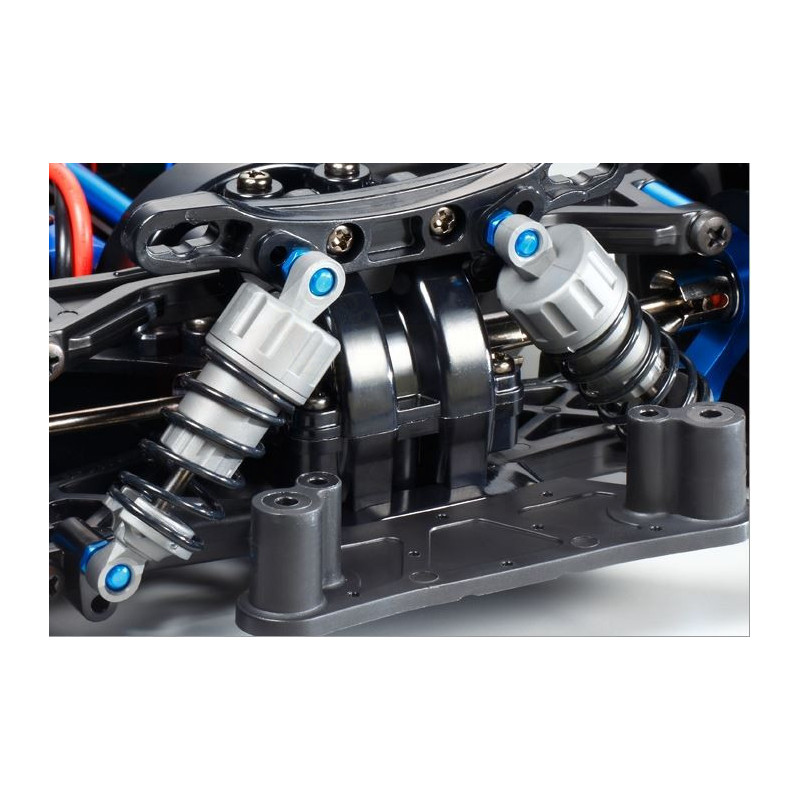

Shock Damper: CVA Oil Filled

Suspension: Fully Independent Double Wishbone

Terrain: Use On-Road

Included Hop-Up-Option parts:

TAM53159 4mm Aluminum Flange Lock Nut (Blue)

TAM54247 3x18mm Aluminum Turnbuckle Shaft (Blue) x2

TAM54501 TT-02 Aluminum Propeller Shaft

TAM53642 5mm Aluminum Ball Connector (Blue)

TAM54500 TT-02 High-Speed Gear Set (68T)

TAM54502 TT-02 Aluminum Propeller Joint

Needed To Complete:

2-Channel Radio and Receiver

Steering Servo

1/10 ESC

540 Sized Motor

257mm Wheelbase Body

Polycarbonate Paint

7.2-7.4V Battery Pack

Compatible Charger

Tools

NB! Finished chassis shown in photos is for illustrative purposes only. See needed to complete list above for full list of items required to complete the model.
