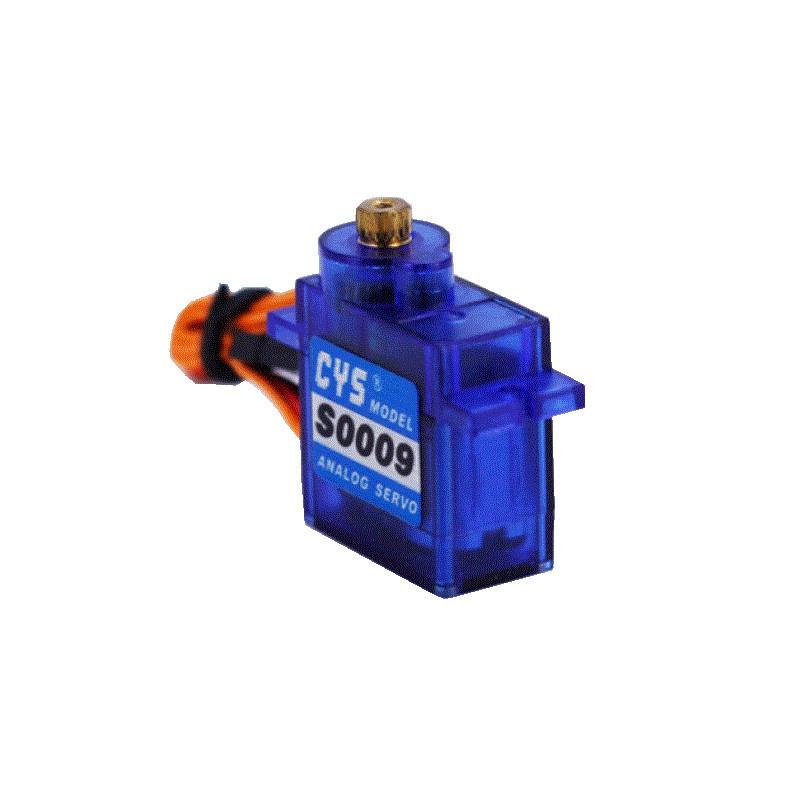

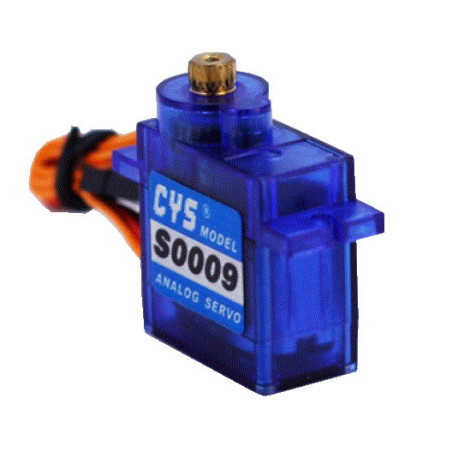

Introducing the CYS-S0009D, a game-changer in the world of precision motion control. Perfect for hobbyists and professionals alike, this compact servo offers exceptional performance in a small package. With its impressive torque and high-speed operation, the CYS-S0009 is ideal for applications requiring precise and reliable movement. Whether it's for model aeroplanes, boats, or robotics, this servo delivers smooth and responsive control every time. Its durable construction ensures long-lasting performance.

Specifications

 General

• Type: Digital micro servo

• Gear type: Metal gears (stronger than plastic)

• Weight: ~9–10 g

• Dimensions: 22.3 × 11.8 × 26.3 mm

• Connector: JR-type (standard 3-pin)

• Spline: 21T (important for servo horns)

Electrical

• Operating voltage: 4.8V – 6.0V

• Idle current: ~10 mA

• No-load current:

  • ~120 mA (4.8V)

  • ~150 mA (6.0V)

• Stall current: ~0.9A – 1A ⚠️

👉 Important: your BEC or receiver power supply must handle ~1A per servo peak

Performance

• Stall torque:

  • 1.3 kg·cm @ 4.8V

  • 1.5 kg·cm @ 6.0V

• Speed:

  • 0.12 sec/60° @ 4.8V

  • 0.10 sec/60° @ 6.0V

Performance

• Stall torque:

  • 1.3 kg·cm @ 4.8V

  • 1.5 kg·cm @ 6.0V

• Speed:

  • 0.12 sec/60° @ 4.8V

  • 0.10 sec/60° @ 6.0V

Environment

• Temperature range: −10°C to +50°C

What makes the S0009D different

Compared to the standard S0009:

• ✔️ Digital control → better holding power and centering

• ✔️ Metal gears → more durable (important for boats)

• ✔️ Slightly smoother and more precise
