FlySky FS-ST8 Transmitter and Receiver Set

FlySky Introduces its newest 8 channel 2.4GHz system, the FS-ST8.

• 8 Channels
• Tracking mixing control
• Vibration function
• USB Simulator
• Bilingual - English & Chinese
• 4096 Resolution
• Function customization of switches, knobs and keys
• Support for settings of the receiver output signals such as PPM, PWM, ibus and sbus
• Support sensors such as height, rotation speed, temperature, voltage and FS-CGPS01 GPS modules
• RGB ambient light
• 8 groups of linear mixing control
• 20 sets of model data
• support firmware update
• Stick mode replacement
• Support FlySky Assistant 3.0
• Free settings of adjustable ratio, throttle curve etc
• Back transmission of RSSI, BVD voltage, other telemetry information
• Support fixed-wing, delta-wing, glider, helicopter, multi-axis, FPV, rc car, engineering vehicle, robot, boat.
• Equipped with STM32 new G series chip, in compliance with the new ANT protocol, to create a cost-effective product

Features:

Digital proportional radio control system.

The RX SET(receiver setting) menu provides a number of function setting menus to allow you to set up the receiver system in all aspects.

User-friendly design for each operation and handling.

With lightweight and portable size, it is easy and convenient to carry and use.

Ergonomics, comfortable hand feel, not easy to sweat.

Specifications:

Brand: FLYSKY

Product Model: FS-ST8

Channels: 8-10

Adaptive Receiver: FS-SR8 ( Adapts Receiver with ANT Protocol )

Model Type: Helicopters, Gliders, Delta-wing Airplanes, Multicopters, Engineering vehicles, Robots, Cars or Boats, etc.

RF: 2.4GHz ISM

Maximum Power: < 20dBm (e.i.r.p.) （EU）

2.4GHz Protocol: ANT

Distance: >1000m（Air distance without interference）

Channel Resolution: 4096

Battery: 1.5AA*4 / 2S Lipo（JST）

Charging Interface: NO

Data Output: PWM/PPM/i-BUS/S.BUS

Low Voltage Warning: AA battery: <4.2V/ Lipo battery: <7.2V

Antenna Type: Built-in double antennas

Display: 128*64 LCD (Black and white Dot Matrix Screen)

Temperature Range: -10℃ ~ +60℃

Humidity Range: 20% ~ 95%

Languages: Chinese, English

Online Update: Yes

Color: Black

Size: 176*210.9*82.5mm

Weight: 420g

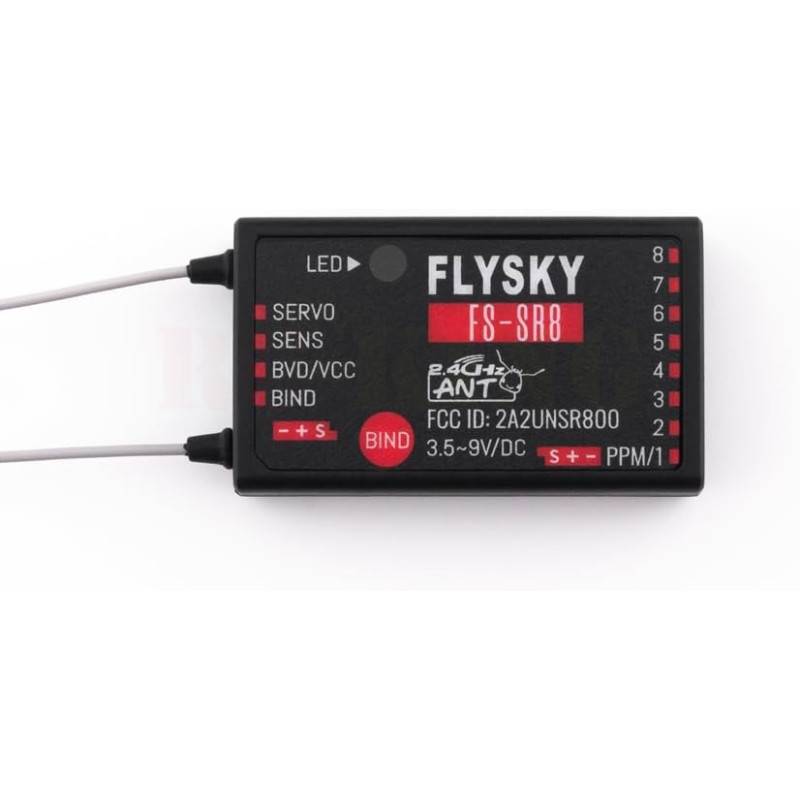

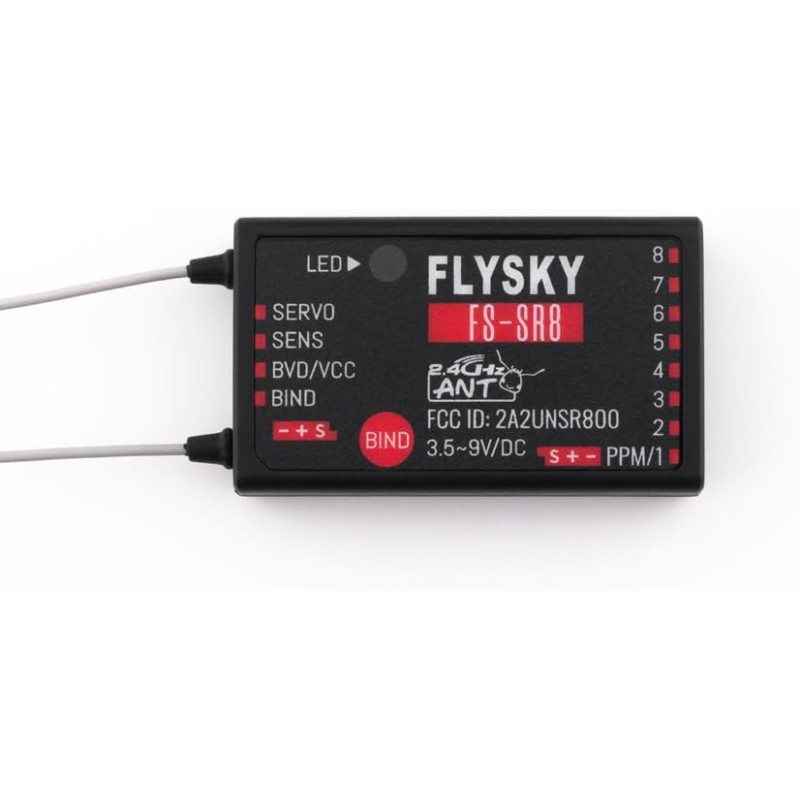

Product Model: FS-SR8

Adaptive Transmitter: FS-ST8 (Adapts Transmitter with ANT Protocol )

Adaptive Models: Helicopters, Gliders, Delta-wing airplanes, Multicopters, Engineering Vehicles, Robots, Cars or Boats, etc.

Numbers of Channel: 8

Maximum Power: < 20dBm (e.i.r.p.) （EU）

RF: 2.4GHz ISM

2.4GHz Protocol: ANT

Distance: >1000m (Air Distance without Interference）

Antenna Type: Two Antennas

Input Power: 3.5~9V/DC

Data Output: PWM/PPM/i-BUS/S.BUS

Online Update: Yes

Temperature Range: -10℃ ~ +60℃

Humidity Range: 20% ~ 95%

Size: 44.8*26.6*11.3mm

Package Information:

Package Size: 23.5*25.5*9.5cm

Package Weight: 661g

Package List:

1* Transmitter

1* Receiver

2* User Manual

Requires 4 x AA Batteries

A bit of a personal blurb on how I feel about my FlySky radio equipment.

About 4 years ago I started having signal issues with my JR 9x2. I had a near miss with an FPV flying wing, lost 2 planes, 1 drone and finally a helicopter to signal loss before I was willing to admit there was something up with my trusty 9x2. Not the radio's fault, but rather the Spektrum module as switching back to the 35mhz module proved bullet proof. As many hobbyists would agree, this was one of JRs most successful, bullet proof radios of all time making it extremely popular with the RC community.

I could have simply replaced the radio module, but decided I wanted an upgrade with telemetry and a nice colour touch screen, but the JR/Spektrum, Hitec and Futaba Radio's were simply out of my price league and I was not a fan of the direction JR had taken with their new design, look and feel, so I took the chance and replaced my trusty JR 9x2 with the FlySky i-10 radio at a 1/3 of the cost of the other big brand radios with similar specs. The other advantage was being able to swap receivers in my models affordably as the 6ch and 10ch receivers cost a 1/4 of the big brand receivers and of course I had approx. 30 models that needed kitting out over time... of which I have probably at this point swapped over 90% of all my models.

So now I personally make use of FlySky radio equipment in my own 90 size Heli's, 20cc planes, drones and everything else in between and have yet to experience a brownout, physical failure or loss of signal in the last 3-4 years I have used it and enjoy the signal feedback, battery voltage (Receiver or Flight pack), temp and RPM sensors. I stand by FlySky because of their reliability first, and bang for buck second.
